Test Environment

System Information

• System Version: deepin 25-crimson-preview EIC7700 20250422
• Download Link: https://deepin-community.github.io/sig-deepin-ports/images/riscv/download

Hardware Information

• SiFive HiFive Premier P550
• Power Adapter
• USB-C Cable * 1
• USB-A Cable * 1

Installation Steps

Getting System Image

Flashing the System and Run

First, connect your computer with the USB-C UART serial port. There’ll be 4 UART ports, which the second biggest one is what we need for debugging, naming /dev/tty.usbserial-102 (macOS) / /dev/ttyUSB2(Linux) in this report. Run following command after cables connected:

macOS: sudo screen -L /dev/tty.usbserial-102 115200 Linux: sudo screen -L /dev/ttyUSB2 115200

Then, turn on the system with booting from Boot-SPI (default). Press Ctrl-C after entering u-boot menu, and execute fastboot usb 0 after command prompt appear. The board side has prepared now.

Ensure you system has fastboot installed. In another shell, execute following commands:

# fastboot flash boot deepin-eic7700-riscv64-25-desktop-installer.boot.ext4
# fastboot flash root deepin-eic7700-riscv64-25-desktop-installer.root.ext4

Example output:

april@Aprils-MacBook-Air deepin-eic7700 % fastboot flash boot deepin-eic7700-riscv64-25-desktop-installer.boot.ext4
Sending sparse 'boot' 1/1 (107313 KB)              OKAY [  3.390s]
Writing 'boot'                                     OKAY [  5.965s]
Finished. Total time: 9.583s

april@Aprils-MacBook-Air deepin-eic7700 % fastboot flash root deepin-eic7700-riscv64-25-desktop-installer.root.ext4
Sending sparse 'root' 1/38 (260442 KB)             OKAY [  8.067s]
Writing 'root'                                     OKAY [  2.739s]
Sending sparse 'root' 2/38 (234405 KB)             OKAY [  7.272s]
Writing 'root'                                     OKAY [  2.213s]
Sending sparse 'root' 3/38 (262141 KB)             OKAY [  8.129s]
Writing 'root'                                     OKAY [  2.435s]
Sending sparse 'root' 4/38 (261589 KB)             OKAY [  8.110s]
Writing 'root'                                     OKAY [  2.338s]

After running complete, Ctrl-C to exit fastboot, and type boot to enter boot menu again. The new system will appear. Select the new system, it shall be boot correctly.

Initialize the System

If you’ve connected a display, you can complete the deepin Installation guide

If you don’t have a GUI interface, you can login via UART:

Default username: root Password: deepin

Expected Results

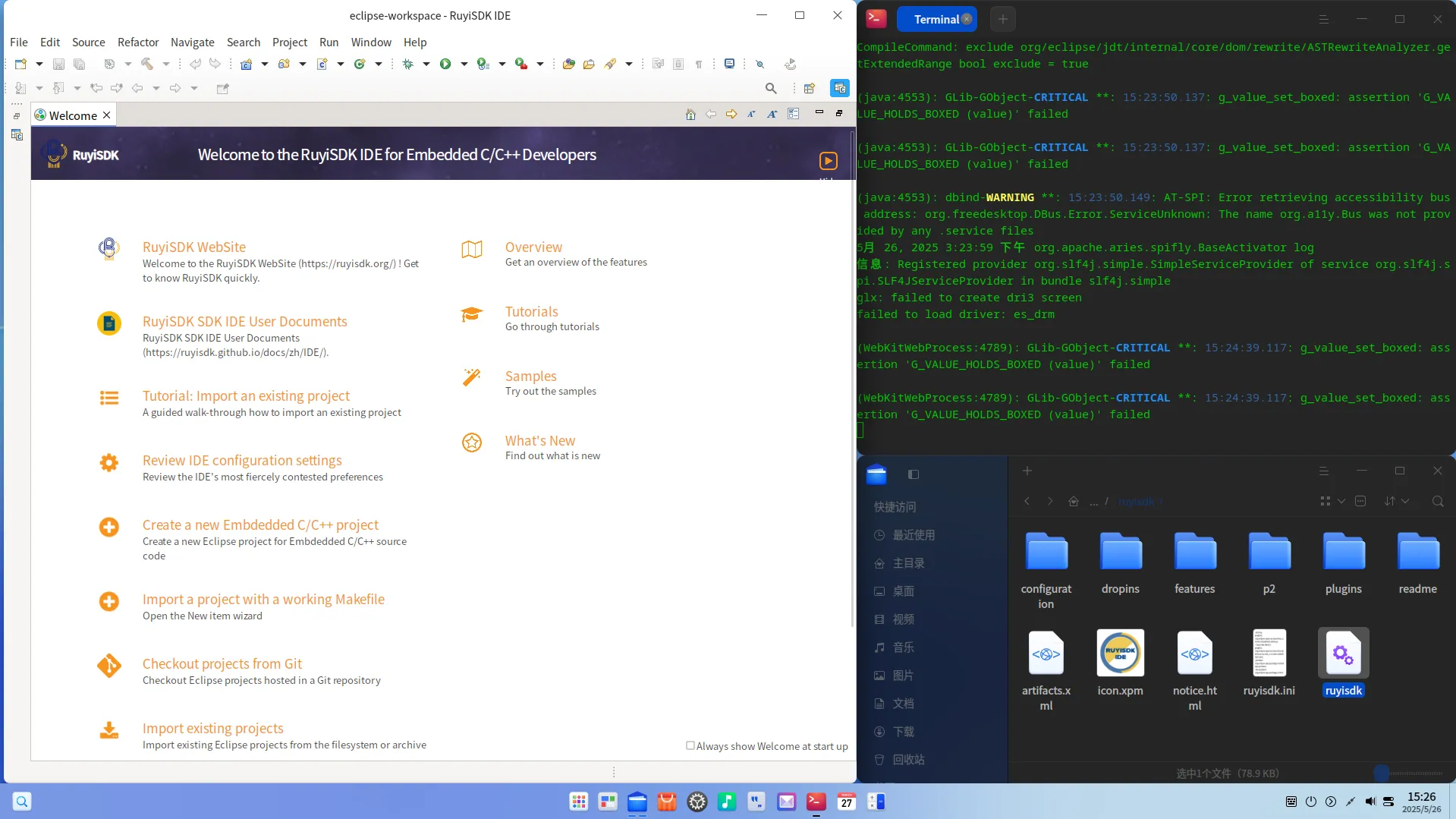

The system should boot successfully, allowing login via the GUI. RuyiSDK IDE Running successful.

Actual Results

The system boots up successfully, and login via the GUI is successful. RuyiSDK IDE Running successful.

Test Criteria

Successful: The actual result matches the expected result.

Failed: The actual result does not match the expected result.

Test Conclusion

Test successful.
