SpacemiT Muse Pi Pro, Bianbu UEFI v1.2 Test Report

Test Environment

System Information

Download Link: https://archive.spacemit.com/image/k1/version/bianbu-computer-uefi/v1.2/
Reference Install Document: https://developer.spacemit.com/documentation?token=QSfGwmkhqiHwqQkHmCicH2Qnnyg

Hardware Information

SpacemiT Muse Pi Pro Board
USB Charger
USB Type-C cables
UART to USB Debugger
microSD Card (If flash to SD card)

Installation Steps

Flashing the Image (SD Card)

Please make sure to choose the file ending with .img.zip

Note: Please pay attention to use the uefi image, instead uboot image used by other k1/m1 devices.

After downloading and extracting the image, use dd to flash the image to the microSD card.

unzip bianbu-computer-s1-uefi-release-for-pipro-v1.2-release-20250421182705.img.zip
sudo dd if=bianbu-computer-s1-uefi-release-for-pipro-v1.2-release-20250421182705.img of=/dev/your-device bs=1M status=progress

Please replace /dev/your-device with the actual device name of your microSD card. Make sure to double-check the device name to avoid overwriting your own disk.

Flashing the Image (eMMC)

Please make sure to choose the file ending without .img

Note: Please pay attention to use the uefi image, instead uboot image used by other k1/m1 devices.

After downloading and extracting the image, use fastboot to flash the image to the eMMC.

unzip bianbu-computer-s1-uefi-release-for-pipro-v1.2-release-20250421182705.zip

Under the USB Type-A port, you can see three buttons. Let the ethernet port facing up, from top to bottom, the buttons are PWR, RST, and FDL . You shall hold the FDL button while power on/RST, to enter the fastboot mode. You shall see the dfu-device in your system:

❯ sudo fastboot devices
dfu-device       DFU download

sudo fastboot stage factory/FSBL.bin
sudo fastboot continue
sleep 1 # Wait for 1 sec
sudo fastboot stage u-boot.itb
sudo fastboot continue
sleep 1 # Wait for 1 sec
sudo fastboot flash gpt partition_universal.json
sudo fastboot flash bootinfo factory/bootinfo_sd.bin
sudo fastboot flash fsbl factory/FSBL.bin
sudo fastboot flash env env.bin
sudo fastboot flash opensbi fw_dynamic.itb
sudo fastboot flash uboot u-boot.itb
sudo fastboot flash ESP efi.img
sudo fastboot flash bootfs_linux bootfs_linux.img
sudo fastboot flash rootfs_linux rootfs_linux.ext4
sudo fastboot flash bootfs bootfs.ext4
sudo fastboot flash rootfs rootfs.ext4

Logging into the System

Logging into the system via the serial port.

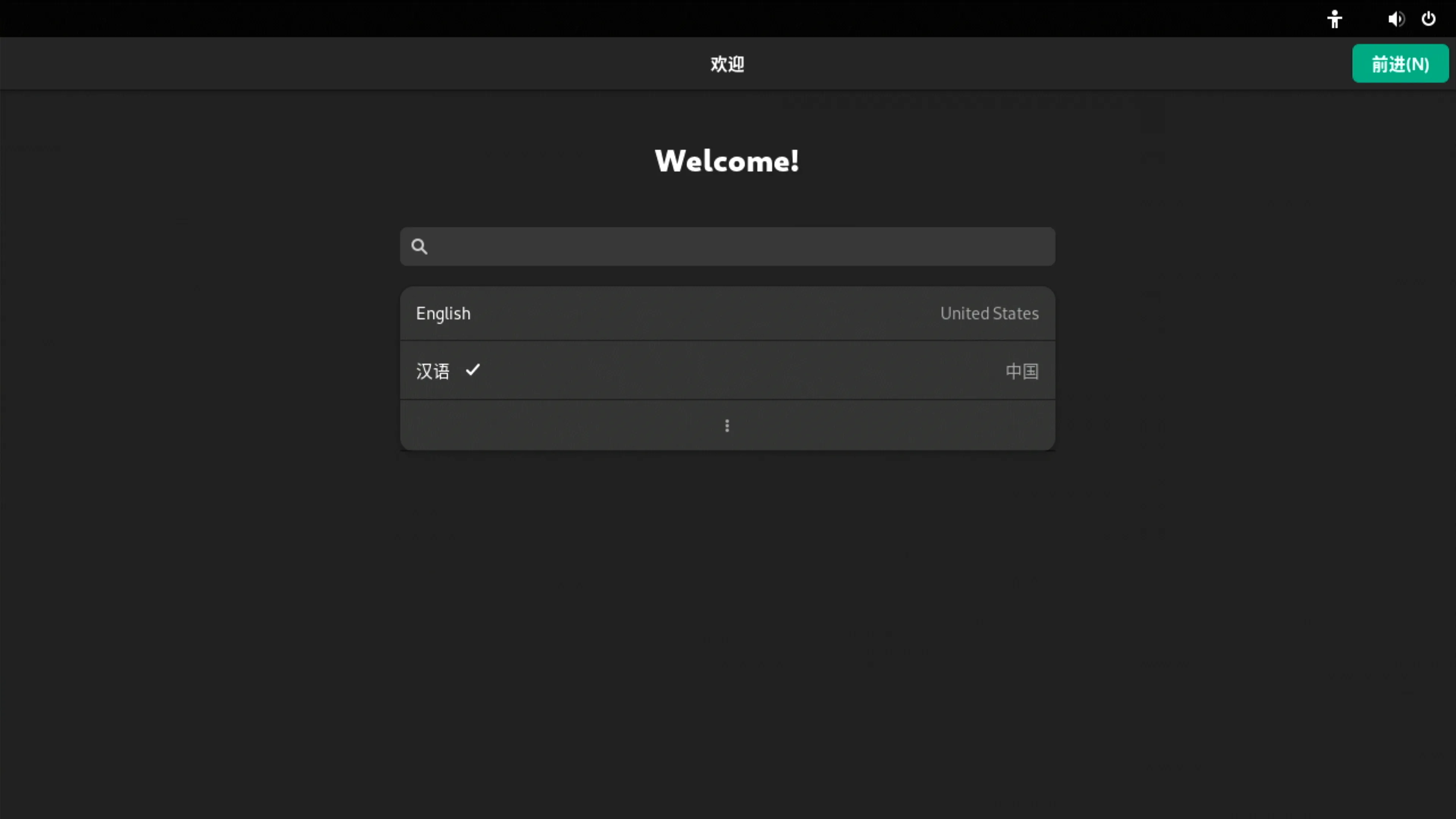

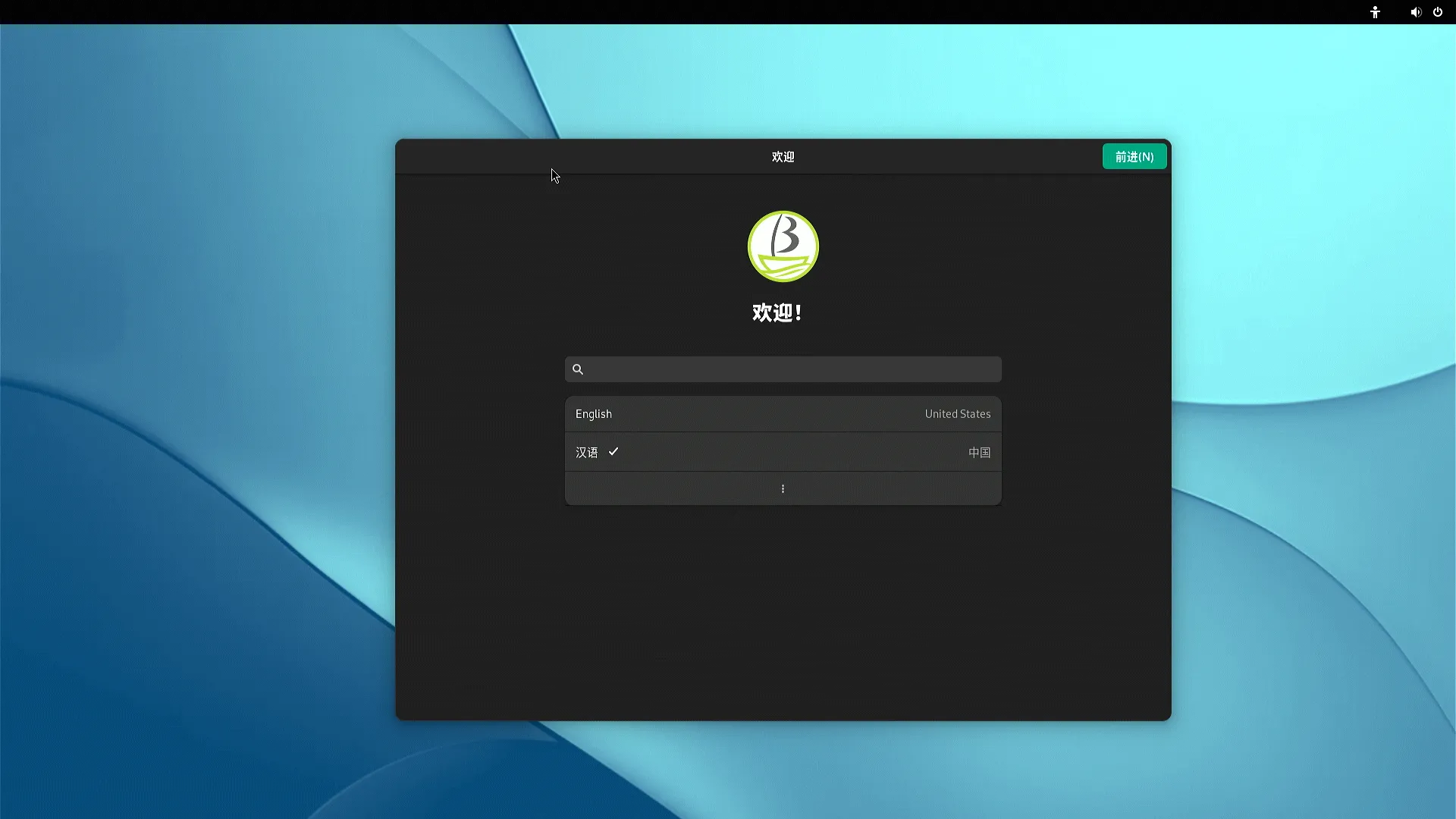

Note: If you boot into the desktop, you can see a install wizard. Follow the wizard to setup the account and password.

Default Username: root Default Password: bianbu

Expected Results

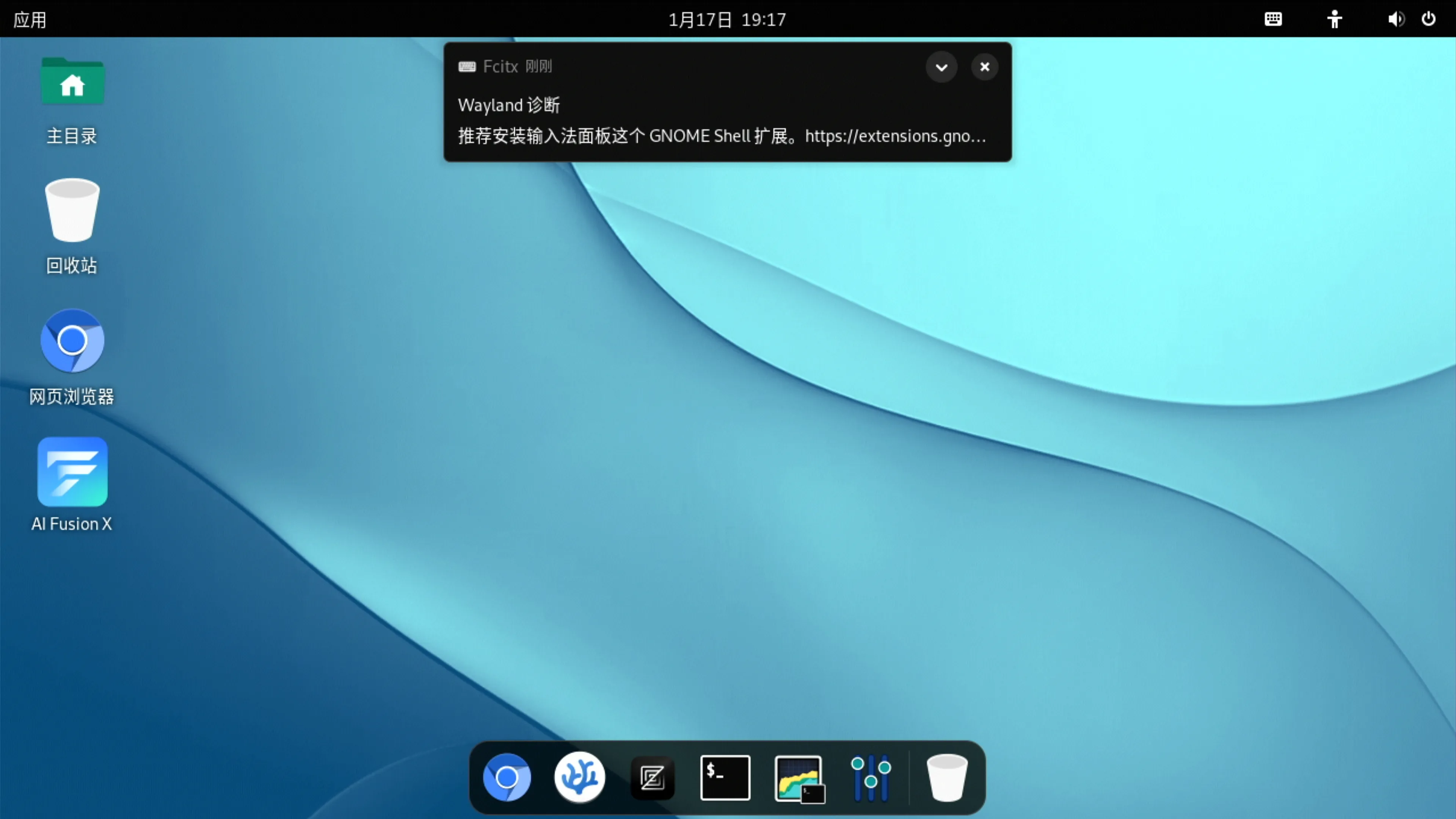

The system should boot normally and allow login via the onboard serial port. Can also login via the desktop.

Actual Results

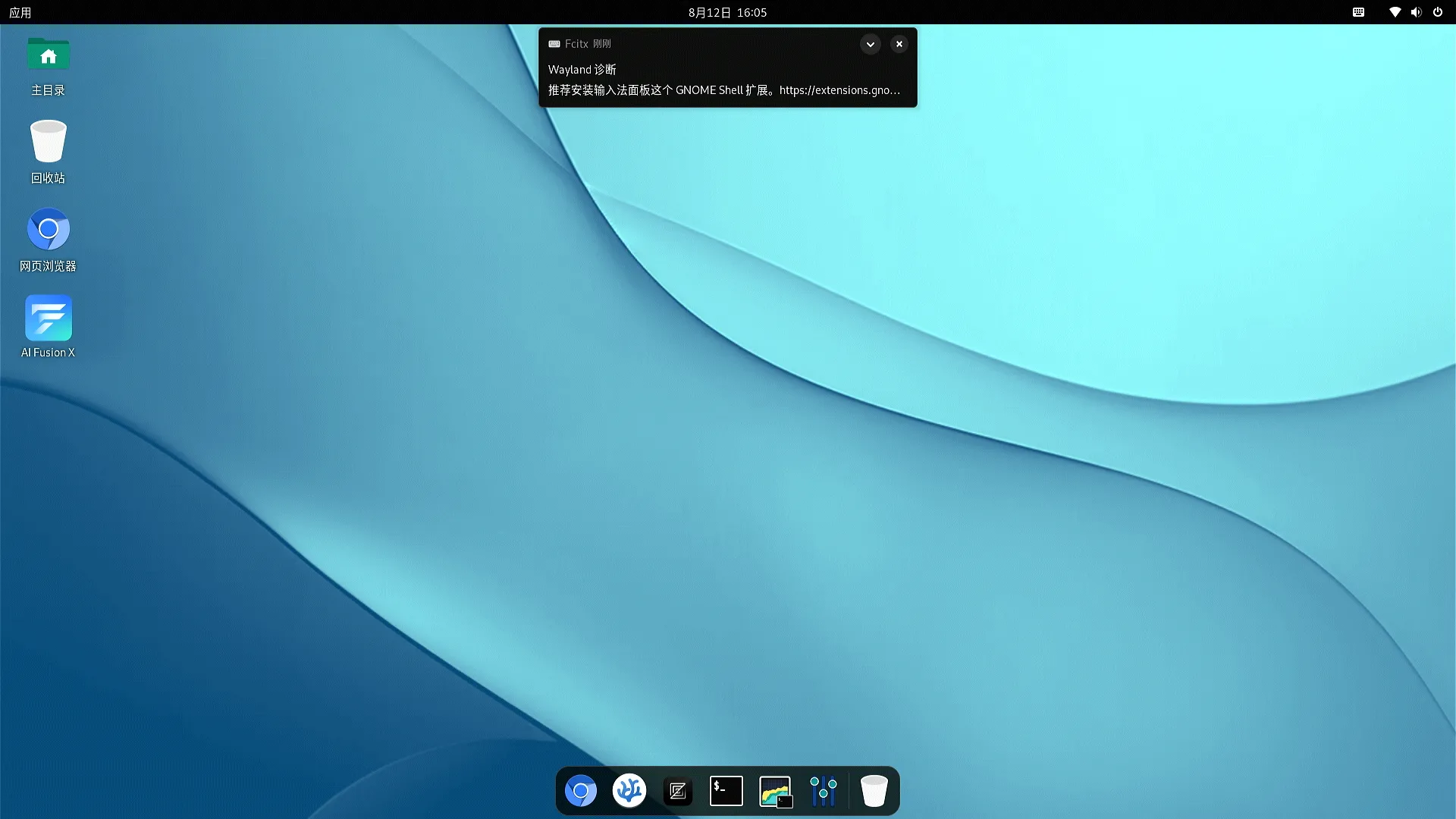

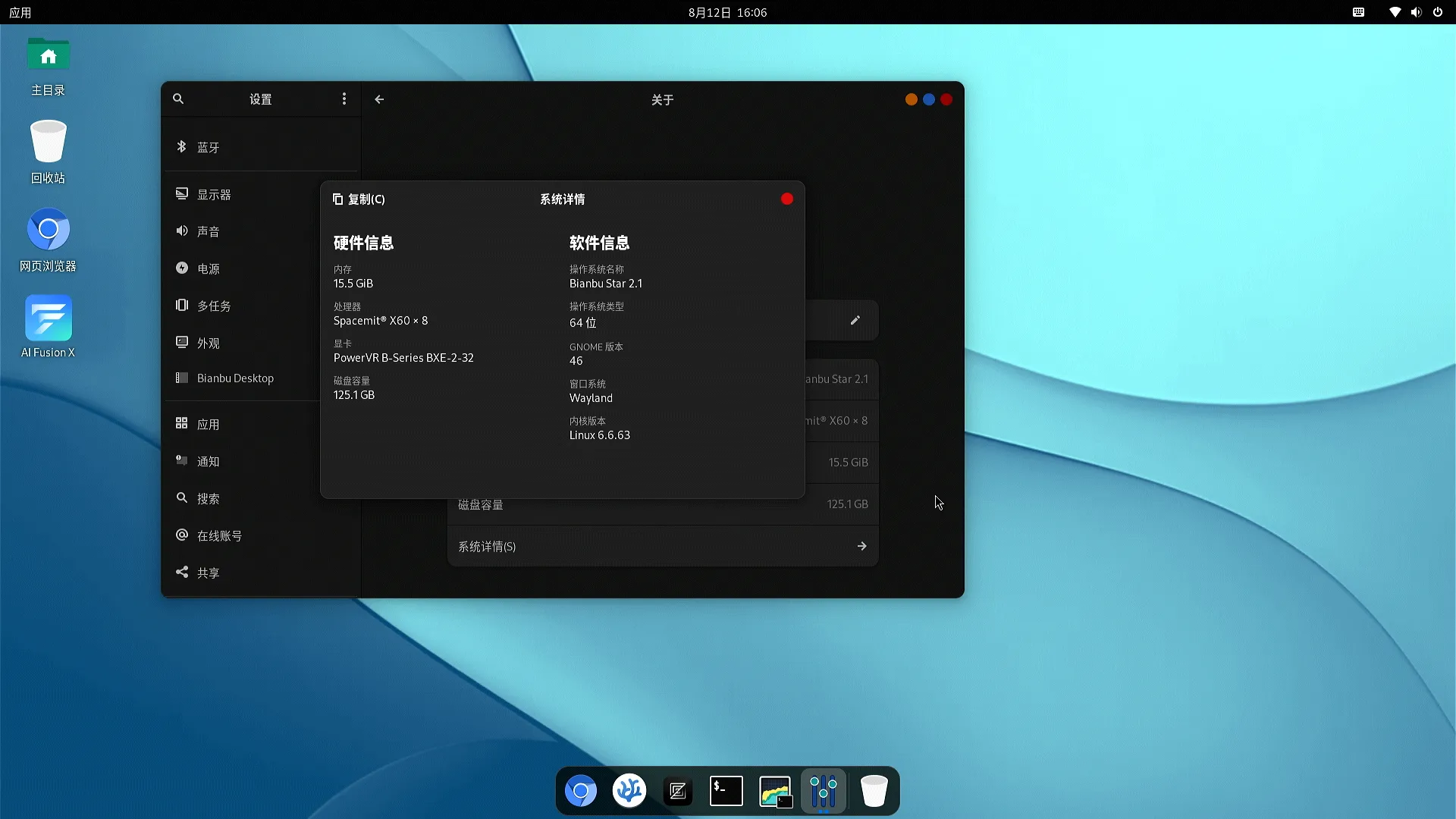

The system booted successfully and login via the onboard serial port was also successful. Can also login via the desktop.

Boot Log

Screen recording (from flashing image to login):

Bianbu 2.1 k1 ttyS0

k1 login: root
密码：
Welcome to Bianbu 2.1 (GNU/Linux 6.6.63 riscv64)

 * Documentation:  https://bianbu.spacemit.com
 * Support:        https://ticket.spacemit.com

The programs included with the Bianbu system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

Bianbu comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.

root@k1:~# uname -a
Linux k1 6.6.63 #2.2~rc3.2 SMP PREEMPT Thu Apr  3 06:53:27 UTC 2025 riscv64 riscv64 riscv64 GNU/Linux
root@k1:~# cat /etc/os-release
PRETTY_NAME="Bianbu Star 2.1"
NAME="Bianbu"
VERSION_ID="2.1"
VERSION="2.1 (Noble Numbat)"
VERSION_CODENAME=noble
ID=bianbu
ID_LIKE=debian
HOME_URL="https://bianbu.spacemit.com"
SUPPORT_URL="https://bianbu.spacemit.com"
BUG_REPORT_URL="https://ticket.spacemit.com"
PRIVACY_POLICY_URL="https://www.spacemit.com/privacy-policy"
UBUNTU_CODENAME=noble
LOGO=ubuntu-logo
root@k1:~# lscpu
架构：                riscv64
  字节序：            Little Endian
CPU:                  8
  在线 CPU 列表：     0-7
型号名称：            Spacemit(R) X60
  每个核的线程数：    1
  每个座的核数：      8
  座：                1
  CPU(s) scaling MHz: 100%
  CPU 最大 MHz：      1600.0000
  CPU 最小 MHz：      614.4000
Caches (sum of all):
  L1d:                256 KiB (8 instances)
  L1i:                256 KiB (8 instances)
  L2:                 1 MiB (2 instances)
root@k1:~#

Test Criteria

Successful: The actual result matches the expected result.

Failed: The actual result does not match the expected result.

Test Conclusion

Test successful.
