openKylin v2.0 SP1 Lichee Pi 3A Test Report

Test Environment

System Information

• System Version: openKylin v2.0-SP1
• Download Link: https://www.openkylin.top/downloads/index.html Choose k1 version
• Reference Installation Document: https://docs.openkylin.top/en/01_%E5%AE%89%E8%A3%85%E5%8D%87%E7%BA%A7%E6%8C%87%E5%8D%97/%E5%9C%A8riscv%E4%B8%8A%E5%AE%89%E8%A3%85/%E5%9C%A8SpacemiT_K1%E4%B8%8A%E5%AE%89%E8%A3%85openKylin

Hardware Information

• Lichee Pi 3A
• Power Adapter
• A USB to UART Debugger
• A microSD Card

Installation Steps

Using dd to flash the image to SD card

After downloading and extracting the image, use dd to flash the image to the microSD card.

xz -d openKylin-Embedded-V2.0-SP1-spacemit-k1-riscv64.img.xz
sudo dd if=openKylin-Embedded-V2.0-SP1-spacemit-k1-riscv64.img of=/dev/your-device bs=1M status=progress oflag=dsync

Logging into the System

Logging into the system via the serial port.

Default Username: openkylin Default Password: openkylin

Expected Results

The system should boot normally and allow login via the onboard serial port. Screen is accessible via display.

Actual Results

The system booted successfully and login via the onboard serial port was also successful. Screen is accessible via display.

Boot Log

Screen recording (from flashing image to login):

openKylin 2.0 openkylin ttyS0

openkylin 用户名：openkylin
密码：
Welcome to openKylin 2.0 (GNU/Linux 6.1.15 riscv64)

 * Support:        https://openkylin.top

The programs included with the openKylin system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.

openKylin comes with ABSOLUTELY NO WARRANTY, to the extent permitted by
applicable law.

You do not have any new mail.
load environment: QT_ACCESSIBILITY=1
load environment: PATH=/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin:/usr/games:/usr/local/games:/snap/bin
load environment: COGL_DRIVER=gles2
load environment: GDK_GL=gles
load environment: XWAYLAND_NO_GLAMOR=1
load environment: SDL_VIDEODRIVER=wayland
load environment: MESA_LOADER_DRIVER_OVERRIDE=pvr
openkylin@openkylin:~$ uname -a
Linux openkylin 6.1.15 #1.0.14.1 SMP PREEMPT Fri Aug 30 18:58:33 UTC 2024 riscv64 riscv64 riscv64 GNU/Linux
openkylin@openkylin:~$ cat /etc/os-release
NAME="openKylin"
FULL_NAME="openKylin"
VERSION="2.0 (nile)"
VERSION_US="2.0 (nile)"
ID=openkylin
PRETTY_NAME="openKylin 2.0"
VERSION_ID="2.0"
HOME_URL="https://www.openkylin.top/"
VERSION_CODENAME=nile
PRODUCT_FEATURES=3
openkylin@openkylin:~$ lscpu
架构：                riscv64
  字节序：            Little Endian
CPU:                  8
  在线 CPU 列表：     0-7
型号名称：            Spacemit(R) X60
  每个核的线程数：    1
  每个座的核数：      8
  座：                1
  CPU(s) scaling MHz: 100%
  CPU 最大 MHz：      1600.0000
  CPU 最小 MHz：      614.4000
Caches (sum of all):
  L1d:                256 KiB (8 instances)
  L1i:                256 KiB (8 instances)
  L2:                 1 MiB (2 instances)
openkylin@openkylin:~$

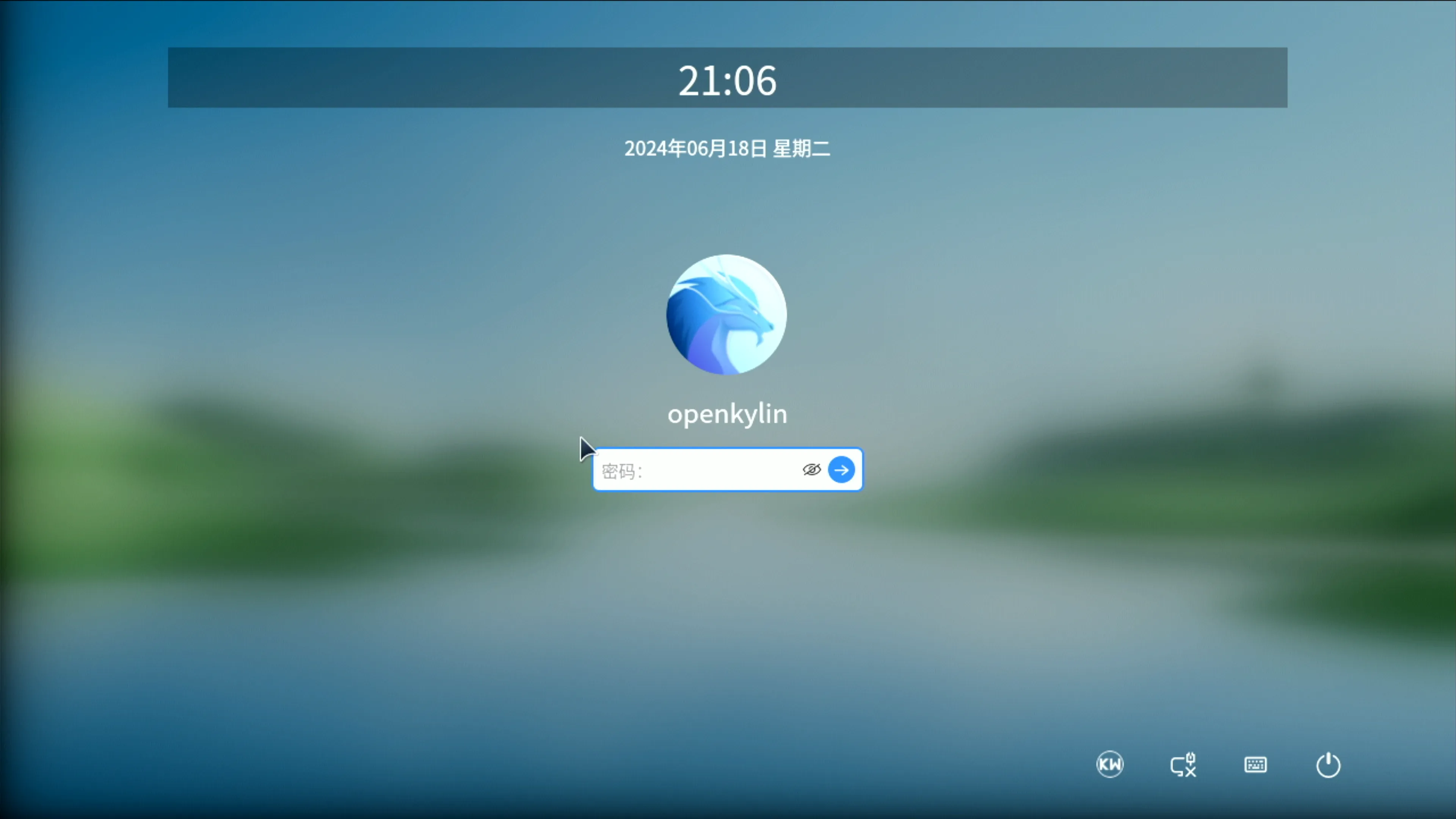

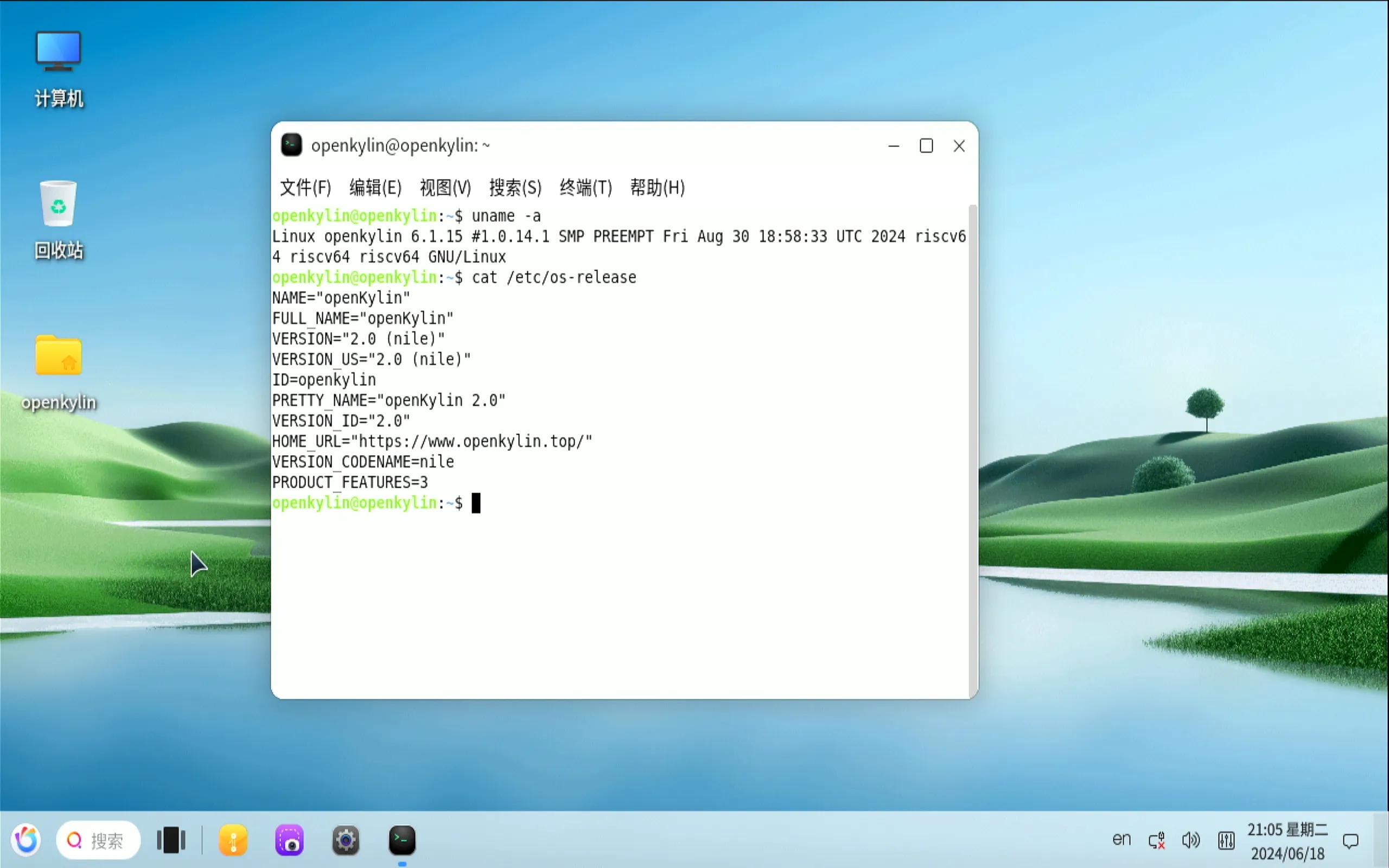

login screen: desktop screenshot:

Test Criteria

Successful: The actual result matches the expected result.

Failed: The actual result does not match the expected result.

Test Conclusion

Test successful.
