Fedora Xfce Desktop Lichee Pi 3A Test Report

Test Environment

System Information

• System version: fedora-v-force Fedora Xfce Desktop 41
• Download Links: https://mirror.iscas.ac.cn/fedora-riscv/dl/SpacemiT/K1_M1/images/latest/k1-fedora-multi-desktops.img.gz
• Reference Installation Document: https://wiki.sipeed.com/hardware/en/lichee/K1/lpi3a/1_intro.html

Hardware Information

• Lichee Pi 3A
• Power Adapter
• A USB to UART Debugger
• A microSD Card

Installation Steps

Using dd to flash the image to SD card

After downloading and extracting the image, use dd to flash the image to the microSD card.

gzip -d k1-fedora-multi-desktops.img.gz
sudo dd if=k1-fedora-multi-desktops.img of=/dev/your-device bs=1M status=progress oflag=dsync

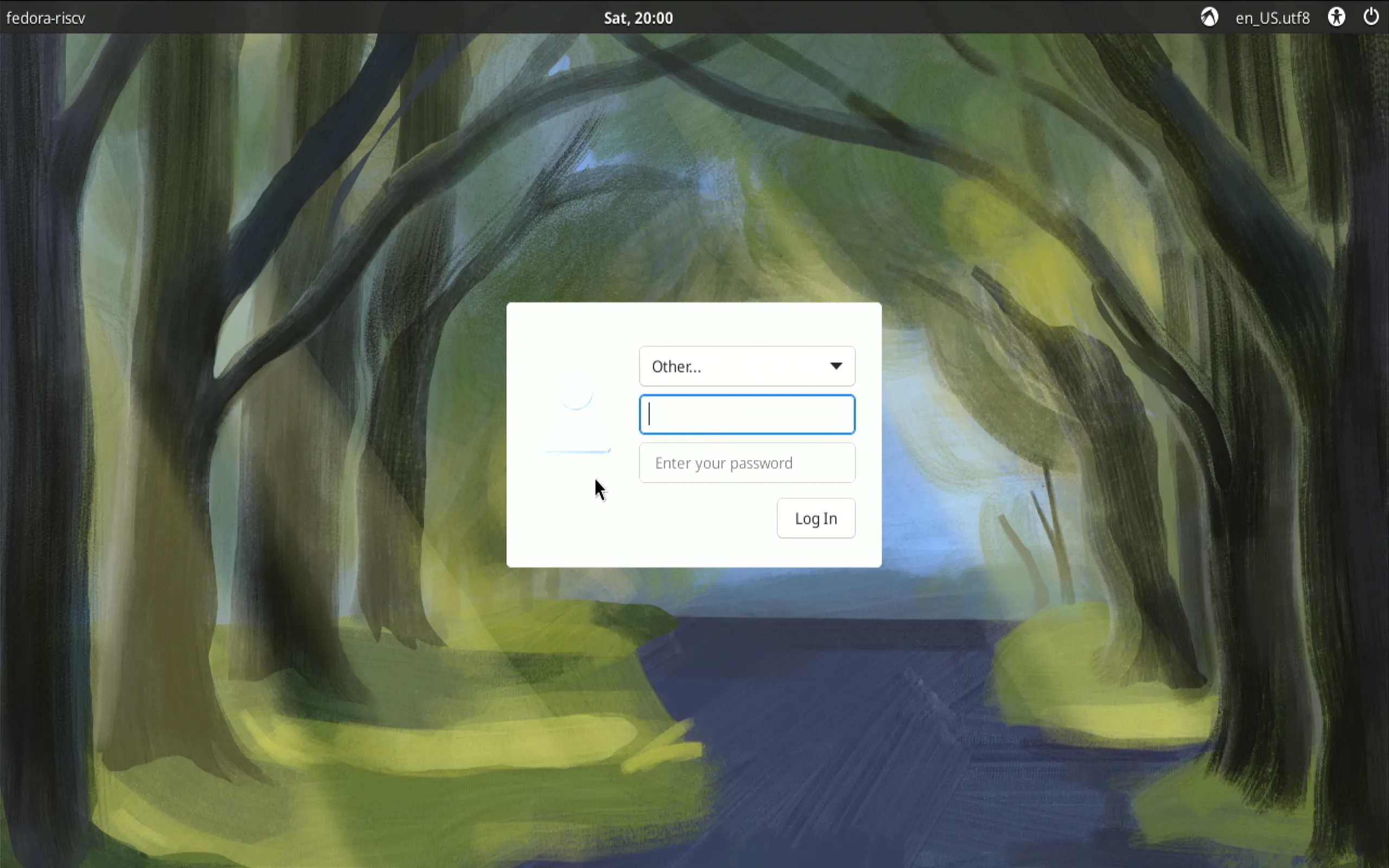

Logging into the System

Logging into the system via the serial port.

Default Username: root Default Password: riscv

Expected Results

The system should boot normally and allow login via the onboard serial port.

Actual Results

The system should boot normally and allow login via the onboard serial port.

Boot Log

Screen recording (From flashing image to system login):

Welcome to the Fedora RISC-V disk image
https://openkoji.iscas.ac.cn/koji/

Build date: Wed Aug 28 15:24:20 UTC 2024

Kernel 6.6.36+ on an riscv64 (ttyS0)

The root password is 'riscv'.
root password logins are disabled in SSH starting Fedora.

If DNS isn’t working, try editing ‘/etc/yum.repos.d/fedora-riscv.repo’.

For updates and latest information read:
https://fedoraproject.org/wiki/Architectures/RISC-V

Fedora RISC-V
-------------
fedora-riscv login: root
Password:

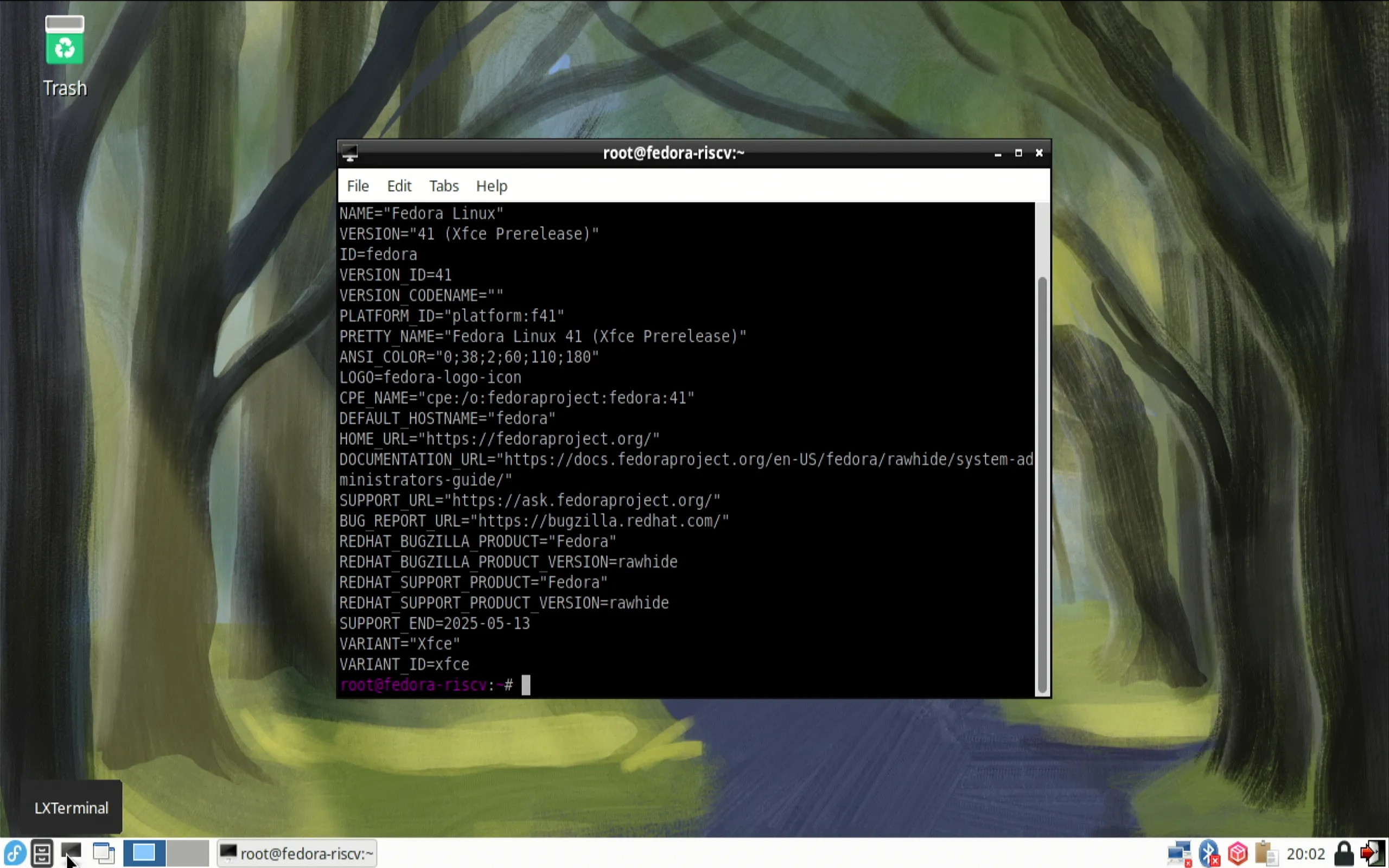

[root@fedora-riscv ~]# cat /etc/os-release
NAME="Fedora Linux"
VERSION="41 (Xfce Prerelease)"
ID=fedora
VERSION_ID=41
VERSION_CODENAME=""
PLATFORM_ID="platform:f41"
PRETTY_NAME="Fedora Linux 41 (Xfce Prerelease)"
ANSI_COLOR="0;38;2;60;110;180"
LOGO=fedora-logo-icon
CPE_NAME="cpe:/o:fedoraproject:fedora:41"
DEFAULT_HOSTNAME="fedora"
HOME_URL="https://fedoraproject.org/"
DOCUMENTATION_URL="https://docs.fedoraproject.org/en-US/fedora/rawhide/system-administrators-guide/"
SUPPORT_URL="https://ask.fedoraproject.org/"
BUG_REPORT_URL="https://bugzilla.redhat.com/"
REDHAT_BUGZILLA_PRODUCT="Fedora"
REDHAT_BUGZILLA_PRODUCT_VERSION=rawhide
REDHAT_SUPPORT_PRODUCT="Fedora"
REDHAT_SUPPORT_PRODUCT_VERSION=rawhide
SUPPORT_END=2025-05-13
VARIANT="Xfce"
VARIANT_ID=xfce
[root@fedora-riscv ~]# uname -a
Linux fedora-riscv 6.6.36+ #1 SMP PREEMPT Wed Aug 28 20:57:19 CST 2024 riscv64 GNU/Linux
[root@fedora-riscv ~]# lscpu
Architecture:           riscv64
  Byte Order:           Little Endian
CPU(s):                 8
  On-line CPU(s) list:  0-7
Vendor ID:              0x710
  Model name:           Spacemit(R) X60
    CPU family:         0x8000000058000001
    Model:              0x1000000049772200
    Thread(s) per core: 1
    Core(s) per socket: 8
    Socket(s):          1
    CPU(s) scaling MHz: 100%
    CPU max MHz:        1600.0000
    CPU min MHz:        614.4000
Caches (sum of all):
  L1d:                  256 KiB (8 instances)
  L1i:                  256 KiB (8 instances)
  L2:                   1 MiB (2 instances)

Test Criteria

Successful: The actual result matches the expected result.

Failed: The actual result does not match the expected result.

Test Conclusion

Test successful.
