RevyOS Lichee Console 4A Version Testing Report

Test Environment

System Information

• System Version: RevyOS
• Download Link:
  • sipeed
  • iscas mirror
• Reference Installation Document: sipeed

Hardware Information

• Lichee Console 4A 8G / 16G
• Power supply come with the board
• A USB A to C cable

Installation Steps

Accessing fastboot Environment

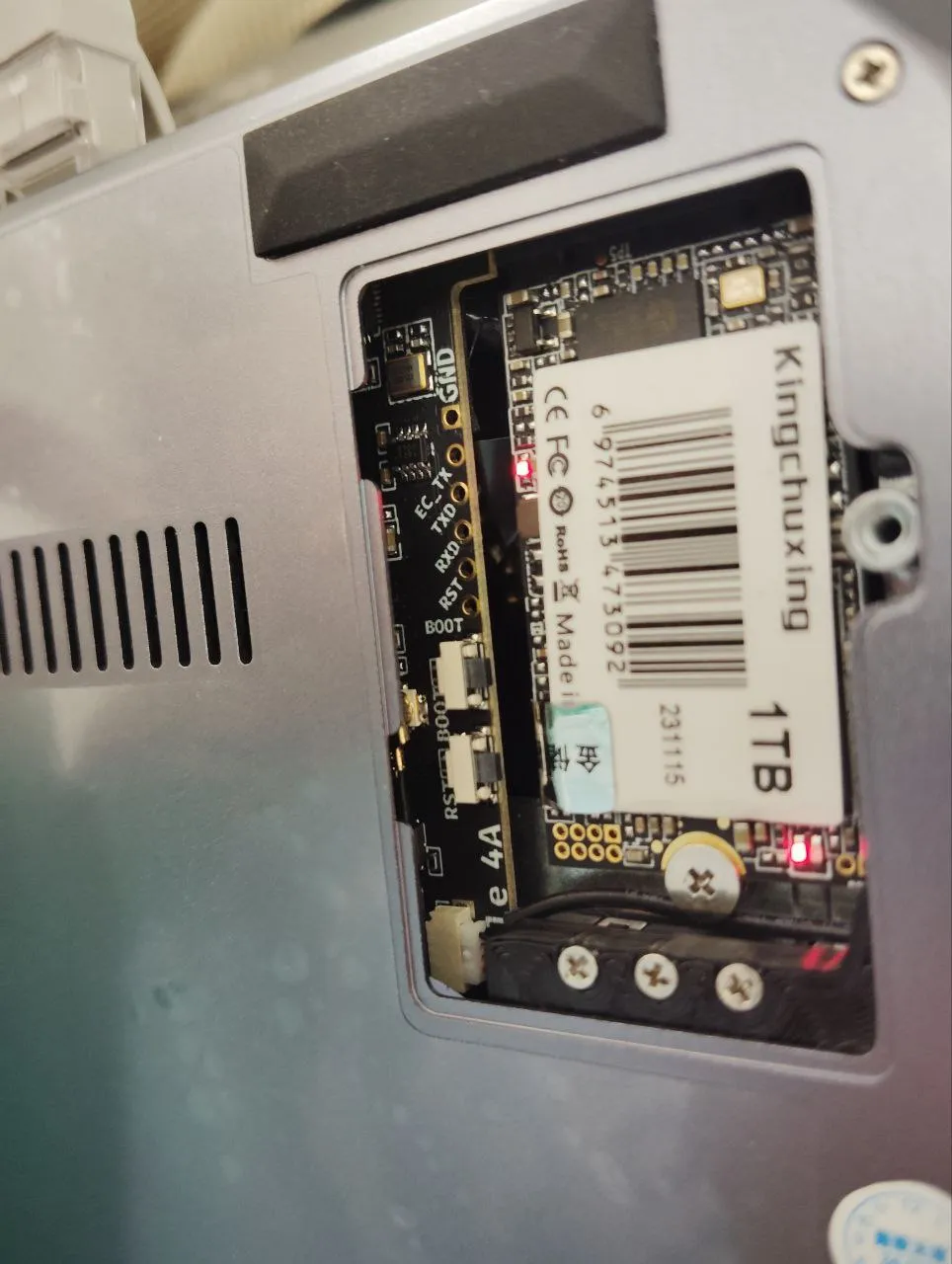

The boot button and rst button are located inside the nvme disk compartment:

Press and hold the boot button while pressing the power button on the keyboard to enter fastboot mode, lsusb should display:

ID 2345:7654 T-HEAD USB download gadget

Flashing Image to Onboard eMMC using fastboot

Decompress the image using lz4:

zstd -d boot-console-20240720_171948.ext4.zst
zstd -d root-console-20240720_171948.ext4.zst

Connect the USB cable to the Type-C port at the back of the device and burn the image using fastboot.

fastboot flash ram u-boot-with-spl-lcon4a-$(ramsize).bin
fastboot reboot
fastboot flash uboot u-boot-with-spl-lcon4a-$(ramsize).bin
fastboot flash boot boot-console-20240720_171948.ext4
fastboot flash root root-console-20240720_171948.ext4

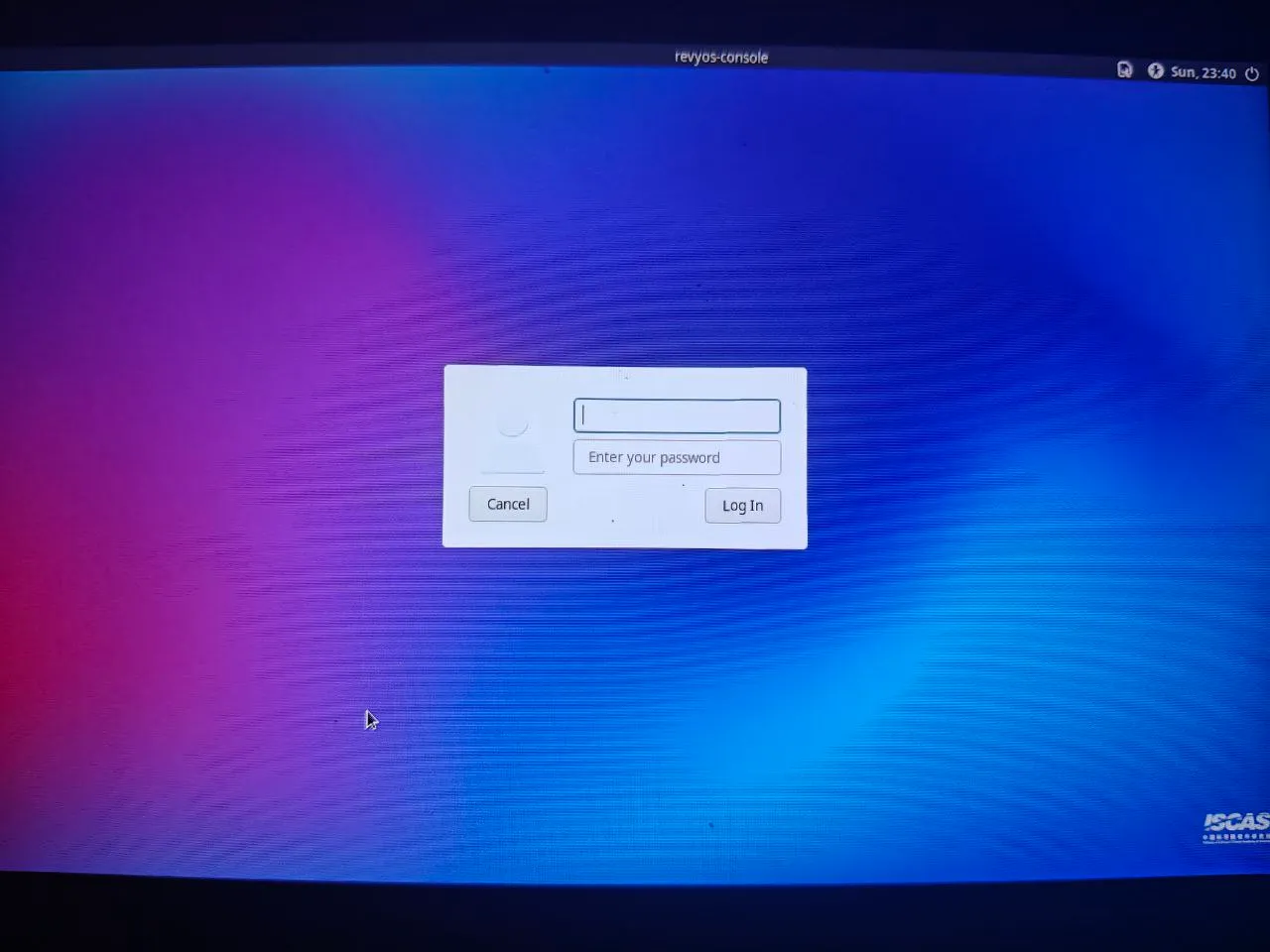

Logging into the System

Logging into the system via serial port or graphical interface.

The default image account password configurations are as follows:

Account: sipeed, Password: licheepi

Account: debian, Password: debian

The root account does not have a password ny default.

Expected Results

The system starts up correctly, and login is successful.

Actual Results

The system boots up correctly, allows successful login, and access to the system.

Boot Log

Screen recording (flashing the system):

debian@revyos-console:~$ cat /etc/os-release
PRETTY_NAME="Debian GNU/Linux 12 (bookworm)"
NAME="Debian GNU/Linux"
VERSION_ID="12"
VERSION="12 (bookworm)"
VERSION_CODENAME=bookworm
ID=debian
HOME_URL="https://www.debian.org/"
SUPPORT_URL="https://www.debian.org/support"
BUG_REPORT_URL="https://bugs.debian.org/"
debian@revyos-console:~$ uname -a
Linux revyos-console 5.10.113-th1520 #2024.07.20.13.28+d8f77de53 SMP PREEMPT Sat Jul 20 13:29:42 UTC  riscv64 GNU/Linux
debian@revyos-console:~$ cat /etc/revyos-release
BUILD_ID=20240720_171948
BUILD_DATE=20240720
BOARD_NAME=console
RELEASE_ID=20240720
COMMIT_ID=40e0de7b829084698dc825c623a52e66e178ad37
RUNNER_ID=10021766410

Test Criteria

Successful: The actual result matches the expected result.

Failed: The actual result does not match the expected result.

Test Conclusion

Test successful.
